Ultrasonic generators

Fast and precise control of ultrasonic processes

What does the generator do?

The ultrasonic frequency is generated in a generator. The generator converts energy from the electrical network into a high-frequency sinusoidal oscillation of 35 kHz or 20 kHz and transmits this to the oscillating structure, which consists of the converter, the booster and the sonotrode. Optimized control processes generate optimum ultrasonic oscillations.

Applications

• Welding (thermoplastics, stranded wires, contacts, metals)
• Punching (thermoplastics, textiles)
• Cutting (textiles, food, films, rubber)
• Riveting (thermoplastics)
• Embossing (thermoplastics, films, textiles)



Components

Converters Boosters Sonotrodes Anvils Nests Feed units

For you to download

Flyer iSONIC PULSE GEN A

Flyer iSONIC PULSE GEN B

Flyer DN35-20

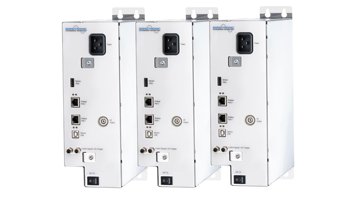

iSONIC PULSE GEN A

Digital ultrasonic generators





• Working frequency: 20 kHz
• Software-supported commissioning via the Ultrasonic Diagnostic System (UDS)
• Data acquisition and transmission via Profinet interface
• Integration into the machine control system via Profinet interface
• Optional remote access to the generator via machine-side router and UDS possible

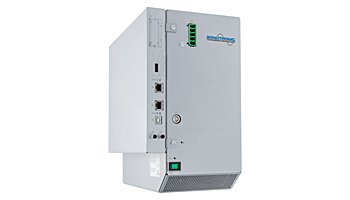

iSONIC PULSE GEN B

Digital ultrasonic generators





• Working frequency: 20 kHz, 30 kHz and 35 kHz
• Software-supported commissioning via the Ultrasonic Diagnostic System (UDS)
• Data acquisition and transmission via Profinet interface
• Integration into the machine control system via Profinet interface
• Optional remote access to the generator via machine-side router and UDS possible

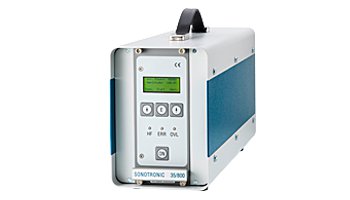

DN 35 and 20 M/MD

Fully automatic ultrasonic generators





• Working frequency: 20 kHz, 30 kHz and 35 kHz
• Gentle transient response of the ultrasonic units while keeping the amplitude constant
• Automatic frequency tuning
• Analog outputs on the Sub-D socket
• Constant working process due to extensive control, monitoring and evaluation electronics
• Options: Timer, power, energy
