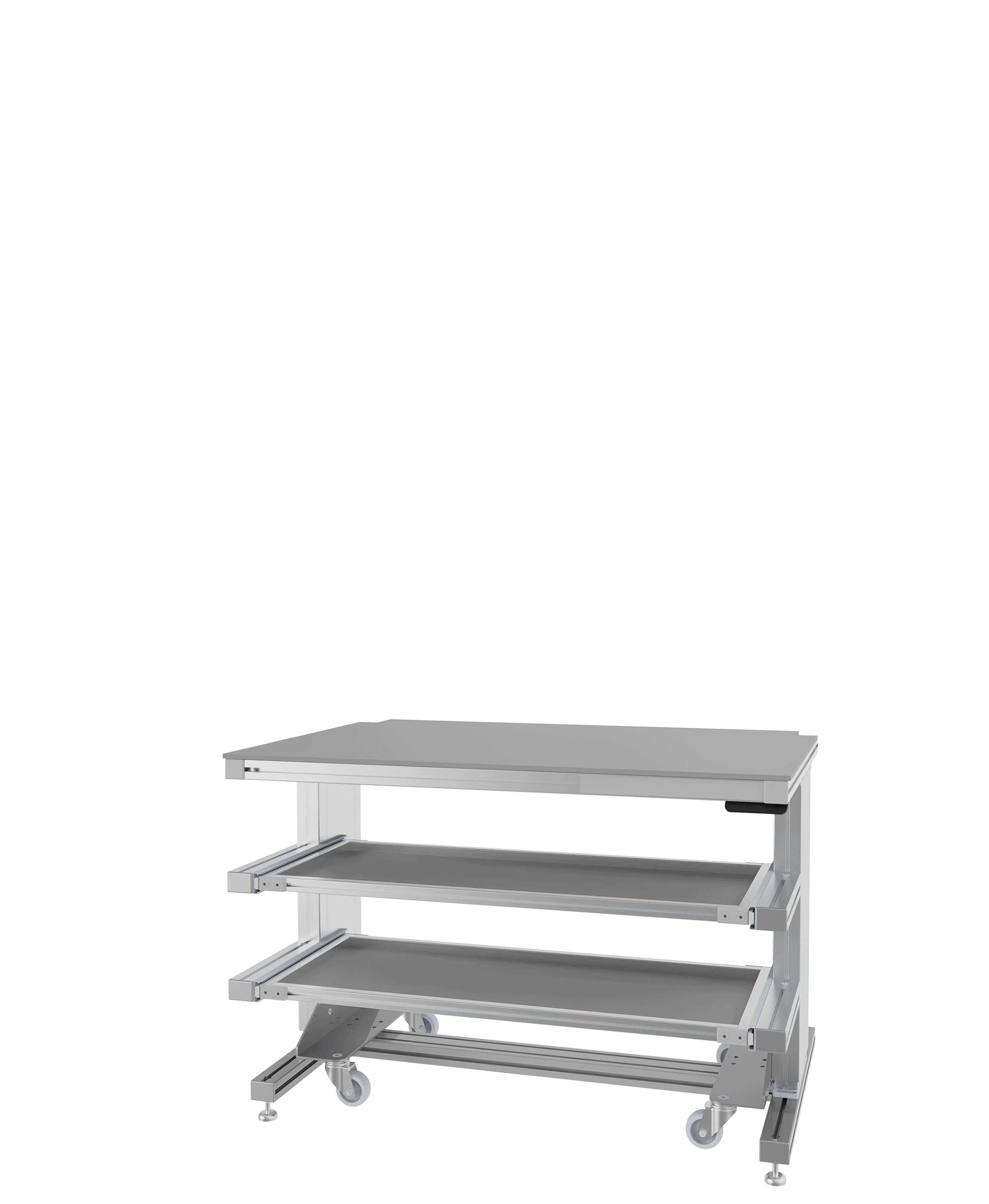

iSONIC ECO CUBE LIFT and LIFT FRAME

Height-adjustable workstation in three widths for the iSONIC ECO TM ultrasonic standard machine and other components

Ergonomic and modularly expandable workstation tables for the iSONIC ECO TM ultrasonic standard machines or other ultrasonic components such as the iSONIC WAVE HSG. The system is available in three overall widths and offers a complete solution from a single source. The control cabinet can be integrated in the table frame to save space. Optional system superstructures allow individual expansion with balancers, lighting, and further accessories.





Advantages

• Safe integration: Fixed place for the ultrasonic machine directly on the work surface
• Space-saving design: External control cabinet can be integrated into the table frame
• Ergonomic working: Electric height adjustment via premium cleanroom lifting columns (CLEANlift)
• Convenient operation: Hand switch with memory function for optimal working heights
• Maximum flexibility: Integrated castors for effortless relocation of the workstation
• High load capacity: Loadable up to 300 kg (on castors: 200 kg)
• Stability: Lowerable chassis for vibration-free stability during operation
• Three overall widths: 600 / 900 / 1,200 mm



Fields of Application

• Use with ultrasonic metal welding components
• Rework and post-processing of workpieces directly at the machine
• Integration into ergonomic production lines



Standard machine concepts

iSONIC ECO iSONIC ECO TM iSONIC ECO FLEX iSONIC ECO HSG iSONIC ECO MASK WELDER

For you to download

Technical data

iSONIC ECO CUBE LIFT S
Width: 600 mm

• Dim. (W×D×H): 600 × 800 × 837 – 1,337 mm

iSONIC ECO CUBE LIFT M
Width: 900 mm

• Dim. (W×D×H): 900 × 800 × 837 – 1,337 mm

iSONIC ECO CUBE LIFT L
Width: 1,200 mm

• Dim. (W×D×H): 1,200 × 800 × 837 – 1,337 mm



iSONIC ECO CUBE LIFT FRAME

Optional Equipment & System Superstructures
Modular additions for efficient workplace design:

• Sturdy system superstructure (FRAME): Suitable for all table widths
• Ergonomic balancer system: To reduce strain when handling tools
• Workplace lighting: Powerful LED lights (AL20 LED, 6,500K) for optimal lighting conditions left and right
• Power supply: Integrated power strip directly on the superstructure
