Blisters, trays and cups

Combined ultrasonic sealing and punching of complex shapes

With the patented modular sonotrode table, blisters, trays or cups can be sealed and punched in a single step. This eliminates the need for subsequent punching devices and shortens the packaging process.

Since the sonotrodes that transmit the ultrasonic are arranged to form a flat sealing area, the sonotrode table can be used regardless of the format. It is sufficient to simply exchange the anvil plate or the parts nest to change the packaging format. This results in great flexibility in packaging design.

In the case of format-dependent packaging solutions with ultrasonic, we adapt not only the parts nests to the packaged goods, but also the sonotrodes themselves. Depending on the application, sealing and punching tasks are also combined here.

Industrial solutions

Tubular bags Pouches Cartons Tubes Food cut

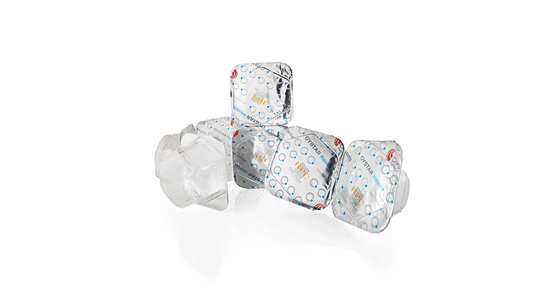

Advantages for format-independent packaging

• Modular system
• Free format design
• Combined sealing and punching (cut & seal)
• Lint-free, non-sharp punching edges

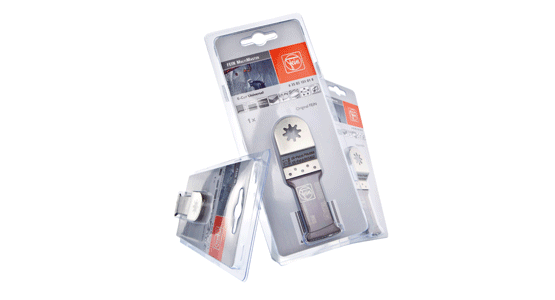

Advantages for format-dependent packaging

• Format-dependent customer and application-specific tools
• Wide experience in tool design
• Own tool production
• Welding and sealing of product-wetted films or packaging
